NDT · Brierley Hill · since 1992

Non-destructive. Fully documented.

Ultrasonic, magnetic particle, dye penetrant, positive material identification, ferrite and hardness testing — in our Brierley Hill workshop, or on your site.

Technique sheet UT · specimen
Method
Ultrasonic (UT)
Material
Carbon steel
Coverage
100% of weld + 10 mm HAZ
Acceptance
BS EN ISO 11666 — Level 2
Send a part The six methods

ISO 9001 · TÜV NORD / UKAS Quality Management 065

1.0 Scope

Since 1992, on the Wallows Estate.

A non-destructive testing company of five, with 1,500 sq ft of workshop and the equipment for every method on this page.

ScanTech was founded in 1992. The head office at Wallows Industrial Estate in Brierley Hill holds the facilities and testing equipment for the full range of services, with excellent transport links across the Black Country and the Midlands.

Where a part cannot come to the workshop, technicians travel to the customer's site to carry out the same tests. Details of on-site work are quoted on enquiry.

“The highest quality service from skilled and qualified professionals, using the latest methods and technology within the NDT sector.”

ScanTech's stated mission
2.0 Methods

Six methods. One written procedure behind each.

Every test below is carried out by a technician certified for it, to a technique sheet agreed before the work starts.

1 2 3
1 Initial pulse 2 Indication 3 Back-wall echo A-scan · contact technique

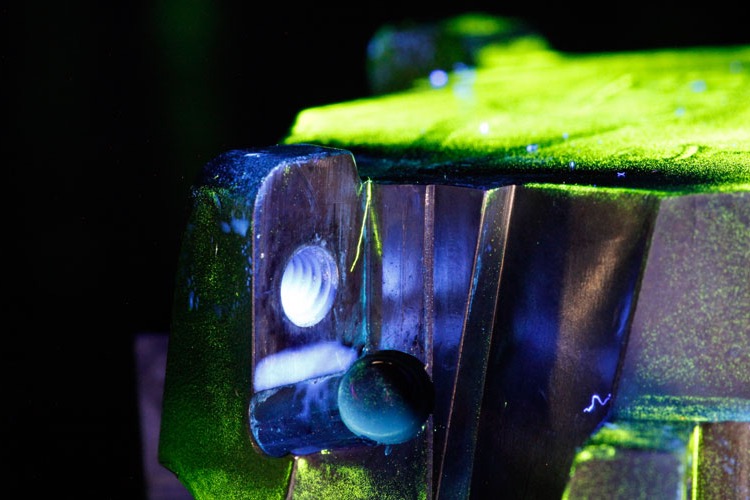

Magnetic particle inspection under ultraviolet light: the edge of a weld glows green.
MPI Fluorescent method, under UV

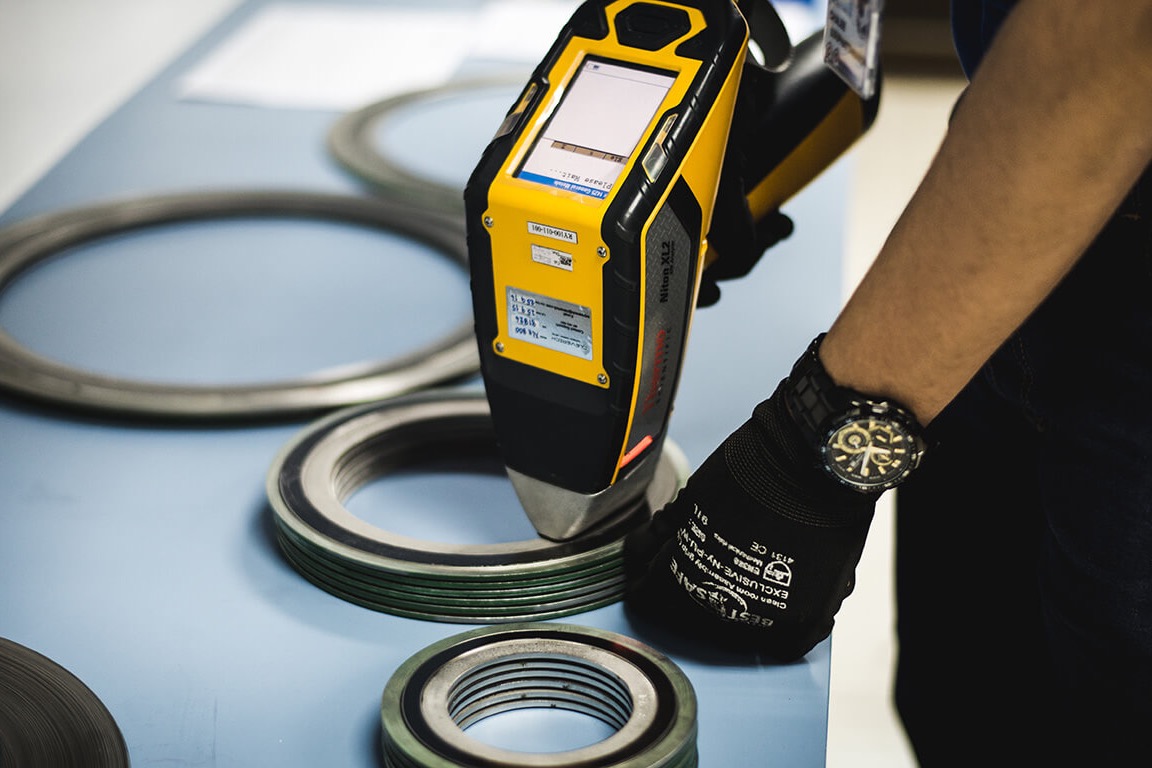

A handheld XRF analyser held against a stack of bearing rings on a bench.
PMI XRF analyser on bearing rings
3.0 Procedure

The sheet is written before the part is touched.

A report is only as good as the procedure behind it. These are the fields ScanTech fills in for a weld — blank here, because they belong to the job.

ScanTech Inspection Services

Unit 13 · Brierley Hill · UKAS QMS 065

Technique sheet

UT · contact, pulse-echo

Job number
—
Client
—
Component
—
Material
Per drawing
Method
UT · contact
Probe & frequency
Per procedure
Scan pattern
Per procedure
Coverage
Per procedure
Acceptance criteria
Per procedure
Acceptance level
Per drawing
Technician
—
Signature & date
—
Scan diagram for a butt weld A cross-section of a plate with a butt weld, a contact probe on the surface, a 45 degree beam path to the back wall, and the heat-affected zone marked either side of the weld. t 45° PROBE WELD HAZ BACK WALL
Fig. 1 — contact technique. Probe angle, scan pattern and coverage are set by the procedure.

Fields marked — are completed for each job. No test results are published on this page.

SignedDate

4.0 Team

Five names, and what each is certified to do.

The technicians and their certification lists, exactly as ScanTech publishes them. Each has a direct email.

  • 01

    Martyn Harris

    martyn@scantechinspection.com
    • UT Welds (SNT-TC-1A & PCN)
    • UT Wrought Products & Forgings (SNT-TC-1A)
    • MPI & DPI (SNT-TC-1A & PCN)
    • Visual Inspection (PCN)
    • XRF PMI
    • Hardness
    • Ferrite

  • 02

    Mac Tattersall

    mac@scantechinspection.com
    • UT Welds (SNT-TC-1A & PCN)
    • UT Wrought Products & Forgings (SNT-TC-1A & PCN)
    • MPI & DPI (SNT-TC-1A & PCN)
    • OES PMI & XRF PMI
    • Hardness
    • Ferrite

  • 03

    Dave Hale

    dave@scantechinspection.com
    • MPI
    • DPI (PCN)
    • OES PMI
    • XRF PMI
    • Hardness
    • Ferrite

  • 04

    Daniel Harris

    dan@scantechinspection.com
    • UT Welds (PCN)
    • UT Wrought Products & Forgings (PCN)
    • MPI & DPI (PCN)
    • Visual Inspection (PCN)
    • XRF PMI
    • Hardness
    • Ferrite

  • 05

    Jack Tattersall

    jack@scantechinspection.com
    • MPI
    • DPI (PCN)
    • OES PMI
    • XRF PMI
    • Hardness
    • Ferrite
5.0 Accreditation

Checked from the outside, counted by them.

Quality management certified by TÜV NORD and registered with UKAS. The project figure is ScanTech's own, quoted as theirs.

TÜV NORD ISO 9001 and UKAS Quality Management 065 certification marks.
ISO 9001
Quality management, certified by TÜV NORD — TÜV UK Ltd.
UKAS
Quality Management 065.

64.5k

Projects completedScanTech's published figure

6.0 Projects

The Eden Project, and the parts on the yard.

A selection from ScanTech's own project photographs — the biomes in Cornwall, and the components that come through the workshop.

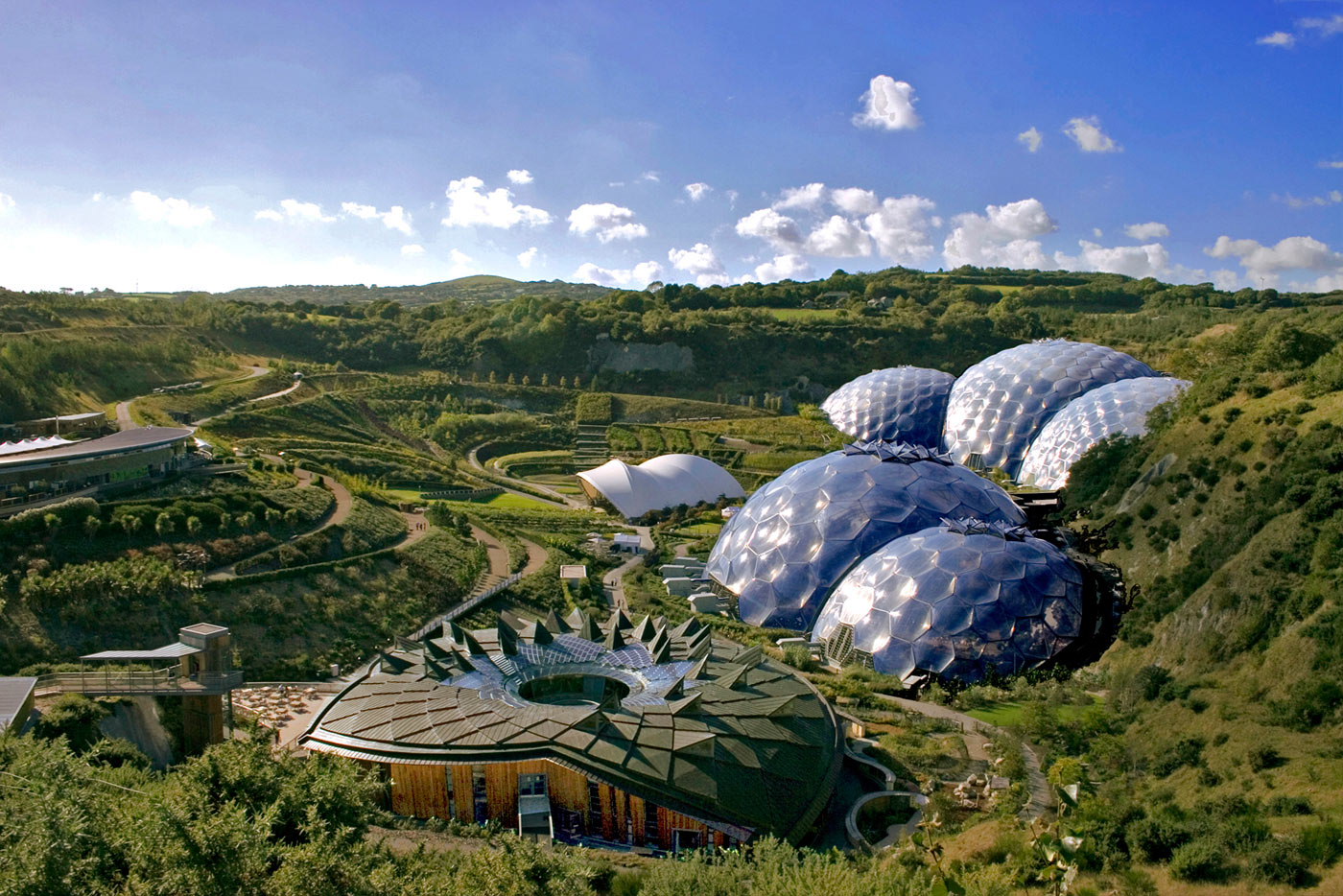

The Eden Project biomes in Cornwall, seen from the rim of the former clay pit.
01Eden Project, Cornwall — from ScanTech's project photographs.
A large machined component with a polished bronze cone, standing on a pallet in the yard.
02A machined component on the yard — from ScanTech's photographs.

Contact

Send a part, or send the drawing.

Tell us the material, the method and when you need it. Parts can be delivered to Unit 13, The Wallows Industrial Estate.

Email enquiries

Telephone

01384 79924

Email

enquiries@scantechinspection.com

Workshop

Unit 13, The Wallows Industrial Estate,
Fenspool Avenue, Brierley Hill,
DY5 1QA
